FLOW M

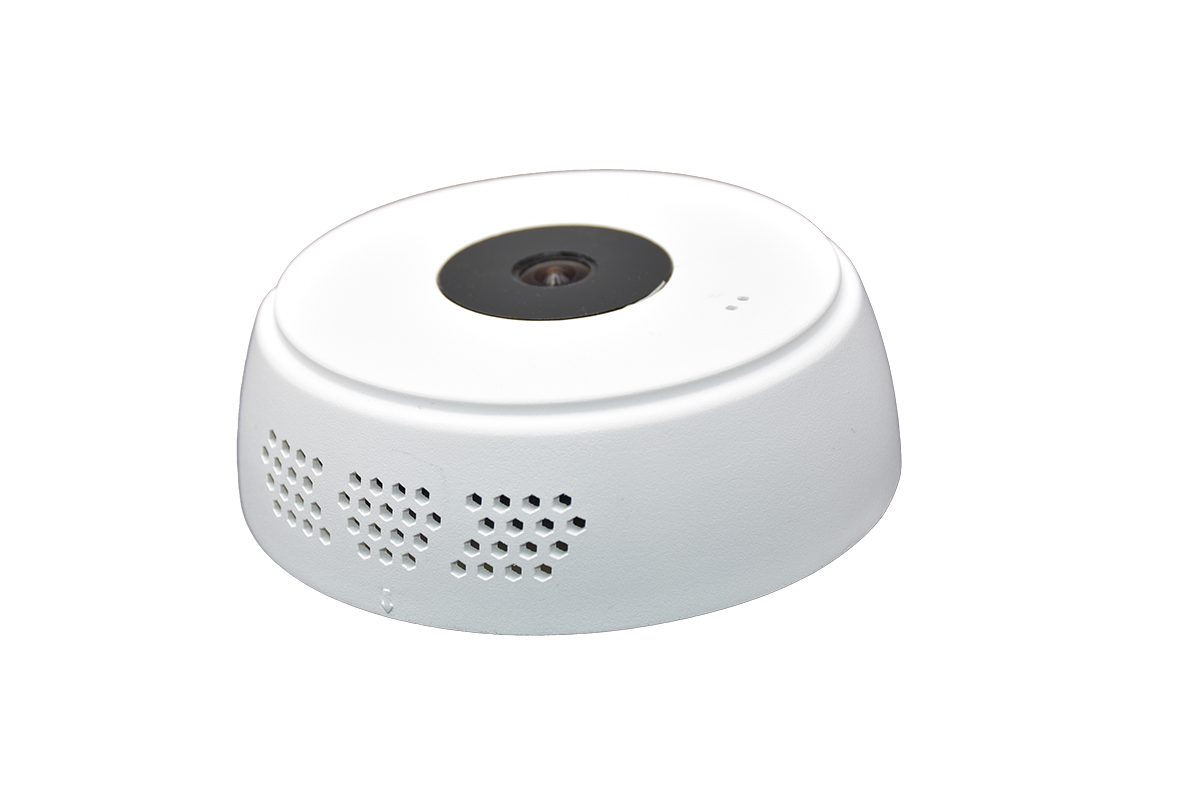

People Flow Counting M 2.0

HOW MANY PEOPLE ARE FLOWING THROUGH THIS NARROW PASSAGE?

FLOW M is a budget-friendly people-counting solution and a cost-effective alternative to the flagship FLOW product. It is ideal for narrow passages and doorways up to 0.9m wide. For larger installations, FLOW M can be combined with other Terabee sensors to reduce overall project costs.

Affordable

Terabee FLOW M is an affordable solution for low-traffic areas such as small meeting rooms, offices and bathrooms.

People passing one at a time

FLOW M is effective for standard doors and entrances up to 0.9m wide where people pass one by one. If multiple people are likely to cross simultaneously, consider upgrading to FLOW.

Accuracy >95%

FLOW M provides a high level of accuracy above 95%, while being the most affordable solution, when properly installed and used.

Privacy ensured by technology

This product is powered by Time-of-Flight 3D sensing technology and ensures privacy protection in any situation. FLOW M does not include any camera or microphone, thus ensuring that privacy is respected even at the source of the sensor – no personal images or data can be extracted.

Analog direct drive for local equipment

FLOW M can simultaneously send digital data to servers for collection and analytics and control local equipment, such as lighting and ventilation systems. This is achieved by sending a simple 0-10V analog signal that corresponds to the occupancy level of the designated space.

No subscription fees

Unlike our competition, we do not force customers and partners to enroll in subscriptions or SaaS models. We consider ourselves part of the infrastructure, focused on delivering top-quality products and data, regardless of where that data is stored. Our devices can transmit data to any chosen server – local or cloud-based – irrespective of ownership. While we are always happy to offer support, we do not mandate the use of our servers or additional services.

KEY PRODUCT FEATURES:

Top 3 reasons to choose our product over the competition

1.

Low-cost
- the most affordable Time-of-Flight (ToF) Flow Counting solution
- smaller version, but still compatible with FLOW deployments
- maintains good accuracy of >95%

2.

No camera = Privacy
- 100% GDPR compliant by technology
- Guaranteed privacy
- No RGB camera used, even for setup
- GDPR maintained even in extreme case of hacking

3.

No subscription fees
- Platform agnostic, ultra-compatible
- Data communication directly into 3rd-party cloud servers
- LoRaWAN, MQTT, and HTTP pushers

Technical Specifications

Product Code: TB-PCM

Performance

PerfomanceInformation
TechnologyInfrared Time-of-Flight depth sensor
Field of View15°
Maximum door width coverage90 cm when installed at 3 m height
Installation HeightFrom 2.3 m up to 3.0 m
Place of UseIndoor
Counting Accuracy95%

Electronics

PerfomanceInformation
Power SourceJack 5.5 × 2.1 mm (10-30 V DC ± 5% - 1 A), PoE IEEE 802.3af/at/b (only PoE model)
Power Consumption3 W average
Initialization TimeApprox. 15 Sec

Mechanics

PerfomanceInformation
Dimensions and WeightØ 110 mm × 36 mm, 129 g, (141 g for LoRa model)
Housing MaterialABS PA-757
Standard off-the-shelf ColorsWhite (additional colors on demand)
Operating Temperature0° to 35°C
Storage Temperature-20° to 60°C
InstallationIncluded: On-ceiling mounting plate. Optional: Terabee Recess Mounting Kit M
CertificationsCE, FCC, RoHS

PoE Communication

PerfomanceInformation
Frequency of Data CommunicationReal-time or at predefined time intervals, on-event
Recommended CablingCat 6 or later
AddressingDHCP, Static IP
Local Wi-Fi access point192.168.4.1
Data ProtocolsHTTP/HTTPS, MQTT/MQTTS
Remote Device ConfigurationMQTT commands
Outbound Traffic Required On Port53, 80/443, 1883/8883
Set Up InterfaceWi-Fi 802.11b/g/n or Gigabit Ethernet

LoRa Communication

PerfomanceInformation
Frequency of Data CommunicationPredefined time intervals (min. of 1 minute)
Supported LoRaWan FrequenciesEU 863-870 MHz
LoRaWAN Activation MethodsOTAA, ABP
Antenna Specification‘+0.8 dBi, VSWR ≤ 2
Remote Device ConfigurationLoRa downlink commands
Set Up Interface for ConfigurationLocal Wi-Fi Access Point
Set Up Interface for Data TransmissionLoRaWAN (1.0.3, Classe A)
