OCCUPANCY

People Occupancy Counting

HOW MANY PEOPLE ARE IN THE ROOM?

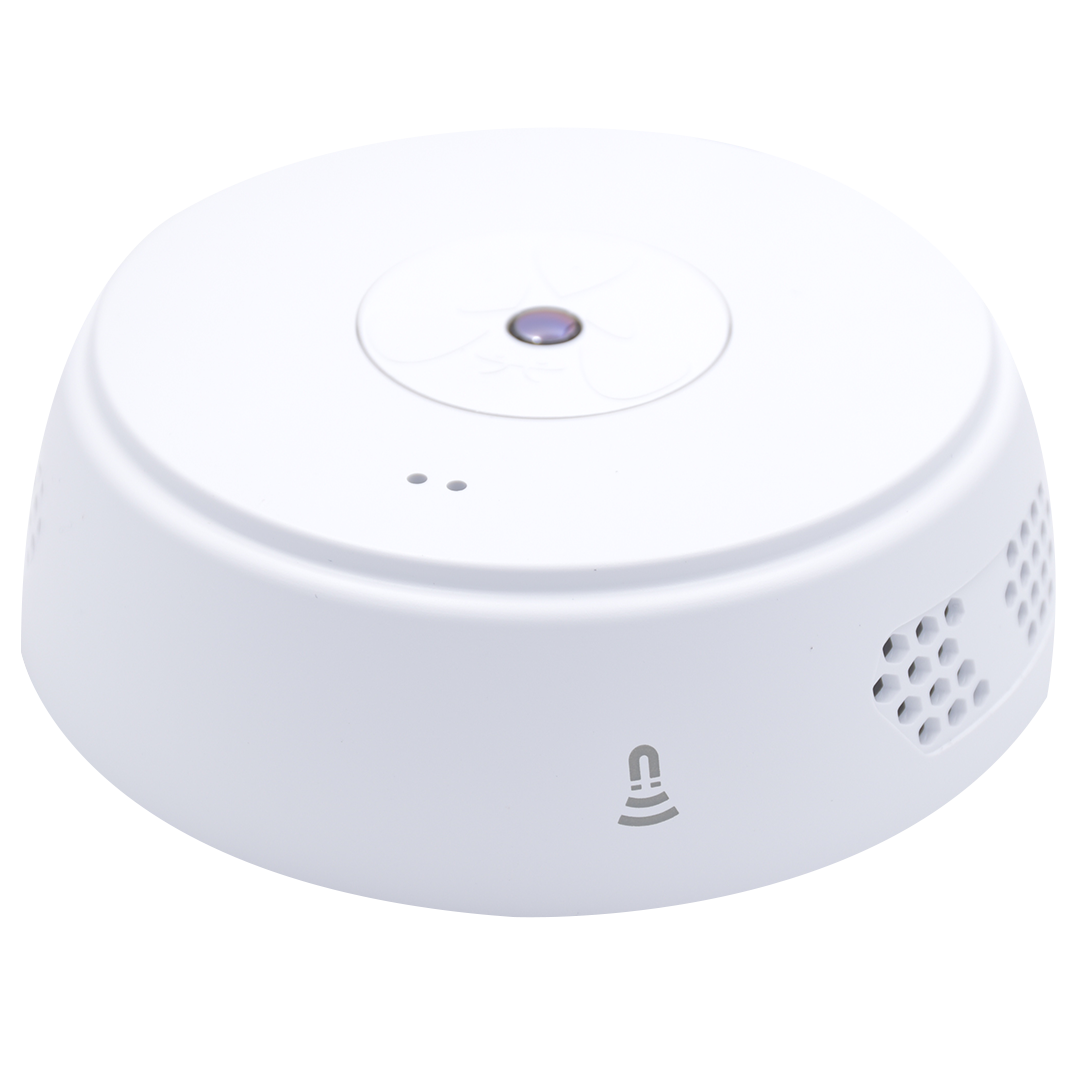

Installed in the center of a given space, OCCUPANCY uses its extra large field of view to monitor the number of people present and their position. It is ideal for semi-static environments and provides data on occupancy levels and locations.

8x8m coverage with one device

OCCUPANCY boasts the largest Field-of-View on the market, allowing a single device to cover exceptionally large areas, regardless of mounting height.  This makes it perfect for any meeting room or open space. For ultra-wide spaces, multiple devices can be seamlessly integrated.

Monitor up to 8 individual zones

A single device can monitor up to 8 independent zones. Each zone operates as a separate monitored area, providing the number of people present. As a result, one device can collect data equivalent to 8 individual sensors.

Best accuracy on the market >98%

OCCUPANCY’s embedded on-the-edge algorithm provides the highest accuracy on the market for this type of product, ensuring the most realistic data possible. The algorithm analyzes temperature signatures to accurately count the number of people while effectively distinguishing and excluding other heat-emitting objects.

Privacy ensured by technology

OCCUPANCY utilizes low-resolution thermal technology and sensors, thus ensuring that privacy is respected. It does not incorporate any camera or microphone, so that no personal images or data can be extracted.

Analog direct drive for local equipment

OCCUPANCY can simultaneously send digital data to servers for collection and analytics and control local equipment, such as lighting and ventilation systems. This is achieved by sending a simple 0-10V analog signal that corresponds to the occupancy level of the designated space.

No subscription fees

Unlike our competition, we do not force customers and partners to enroll in subscriptions or SaaS models. We consider ourselves part of the infrastructure, focused on delivering top-quality products and data, regardless of where that data is stored. Our devices can transmit data to any chosen server – local or cloud-based – irrespective of ownership. While we are always happy to offer support, we do not mandate the use of our servers or additional services.

KEY PRODUCT FEATURES:

Top 3 reasons to choose our product over the competition

1.

No camera = Privacy
- 100% GDPR compliant by technology
- Guaranteed privacy
- No RGB camera used, even for setup
- GDPR maintained even in extreme case of hacking

2.

Best accuracy and footprint cover
- 98%+ counting accuracy
- Independent of lighting condition, color and other patterns
- market leading accuracy for thermal occupancy sensors

3.

No subscription fees
- Platform agnostic, ultra-compatible
- Data communication directly into 3rd-party cloud servers
- LoRaWAN, MQTT, and HTTP pushers

Technical Specifications

Product Code: TB-POC
Performance

PerfomanceInformation
TechnologyThermal Imaging
Field of View160°
Footprint (Coverage Area Dimensions)64 m2 (8 m × 8 m)
Installation HeightFrom 2.4 m up to 4.0 m
Place of UseIndoor
Counting Accuracy98%

Electronics

PerfomanceInformation
Power SourceJack 5.5 × 2.1 mm (10-30 V DC ± 5% - 1 A) RJ45 (PoE IEEE 802.3af) only PoE model
Power Consumption2 W average
Analog Output0-10 V proportional to room occupancy
Initialization TimeApprox. 3 min

Mechanics

PerfomanceInformation
Dimensions and WeightØ 110 mm × h 36 mm, 128 g (+12 g for PoE model)
Housing MaterialABS PU 8158
Standard off-the-shelf ColorsWhite, Black (additional colors on demand)
Operating Temperature0° to 35°C
Storage Temperature-20° to 60°C
InstallationIncluded: On-ceiling mounting plate. Optional: Terabee Recess Mounting Kit M
CertificationsCE, FCC, RoHS

PoE Communication

PerfomanceInformation
Frequency of Data CommunicationReal-time or at predefined time intervals, on-event
Recommended CablingCat 6 or later
AddressingDHCP, Static IP
Device Hostnamepoc-"serial_number" (replace "" with <>)
Data ProtocolsHTTP/HTTPS, MQTT/MQTTS
Outbound Traffic Required On Port53, 123, 80/443, 1883/8883
Set Up InterfaceGigabit Ethernet, Wi-Fi 2.4 GHz

LoRa Communication

PerfomanceInformation
Frequency of Data CommunicationAt predefined time intervals (minimum of 2 minutes)
Supported LoRaWan FrequenciesEU 863-870 MHz, US 902-928 MHz (coming soon)
LoRaWAN Activation MethodsOTAA, ABP
Antenna Specification‘+0.8 dBi, VSWR ≤ 2
Remote Device ConfigurationLoRa downlink commands
Set Up Interface for ConfigurationLocal Wi-Fi Access Point
Set Up Interface for Data TransmissionWi-Fi 2.4 GHz, LoRaWAN (1.0.3, Classe A)
