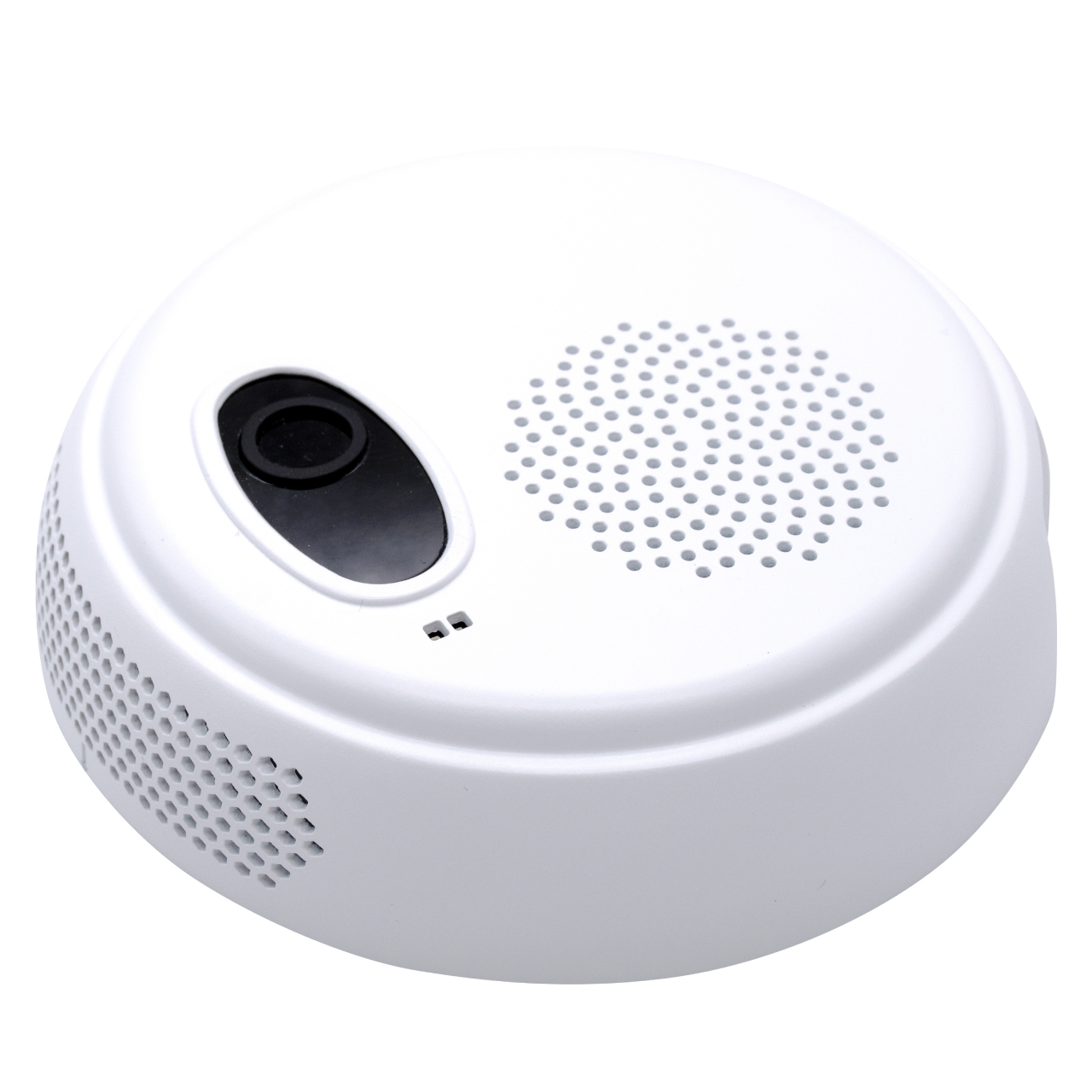

FLOW

People Flow Counting L-XL

How many people are entering or exiting from this door?

FLOW is installed above the entrance or exit of a designated space and monitors how many people are “flowing” through that passage. Suitable for dynamic situations where multiple people move simultaneously in both directions, FLOW outputs the number of people going in/out of the space in real time. This data can be used to assess entrance traffic, but also aggregated to extract occupancy information.

Multi-device support for wide entrances

A single FLOW device can cover a standard entryway of up to 3.4 meters wide. For larger entryways, multiple FLOW sensors can be connected to cover a width of up to 15 meters. The field of view of each sensor is merged, allowing the sensor array to function as a single device with a significantly expanded field of view. This modularity simplifies data handling, as the installed array operates as a single sensor and data source.

Best accuracy on the market >98%

FLOW provides the highest accuracy on the market for similar products, ensuring the most realistic data possible. The embedded Terabee on-the-edge algorithm uses 3D point clouds to identify human shapes and track them within the sensor’s field of view. This allows the device to accurately count entry and exit passages.

Privacy ensured by technology

This product, powered by Time-of-Flight (ToF) 3D sensing technology, ensures privacy protection by utilizing low-resolution ToF sensors instead of cameras or microphones. This design guarantees privacy at the source, meaning that even in the unlikely event of a security breach, no personal images or data can be extracted.

A progressive and modular solution

FLOW provides a flexible, modular solution that allows  to progressively monitor a building’s occupancy. Start with a few devices at main entrances and exits to gain macro-level insights. Add more sensors to staircases and elevators to understand vertical movement patterns within the building. For more granular insights, equip floors with additional devices to monitor desk areas, meeting rooms, and common spaces. You can even create “virtual walls” to divide larger areas for more targeted analysis.

No subscription fees

Unlike our competition, we do not force customers and partners to enroll in subscriptions or SaaS models. We consider ourselves part of the infrastructure, focused on delivering top-quality products and data, regardless of where that data is stored. Our devices can transmit data to any chosen server – local or cloud-based – irrespective of ownership. While we are always happy to offer support, we do not mandate the use of our servers or additional services.

KEY PRODUCT FEATURES:

Top 3 reasons to choose our product over the competition

1.

Best accuracy >98%
- 98%+ counting accuracy
- Independent of lighting condition, color and other patterns
- market leading accuracy for ToF (time of flight) sensors

2.

No camera = Privacy
- 100% GDPR compliant by technology
- Guaranteed privacy
- No RGB camera used, even for setup
- GDPR maintained even in extreme case of hacking

3.

No subscription fees
- Platform agnostic, ultra-compatible
- Data communication directly into 3rd-party cloud servers
- LoRaWAN, MQTT, and HTTP pushers

Technical Specifications

Product Code: TB-PCL-XL

Performance

PerfomanceInformation
TechnologyInfrared Time-of-Flight depth sensor
Field of View74° x 57°
Example of footprint coverage3.4 x 2.55 m @ 4m height / 1.5 x 1.0 m @ 2.4 m height
Multi-devices for wide passagewaysUp to 15m with 5 devices (requires ethernet connection between sensors)
Installation HeightFrom 2.4 m up to 4.0 m
Place of UseIndoor
Counting Accuracy98%

Electronics

PerfomanceInformation
Power SourceMicro-USB (minimum 5 V - 2.5 A) only LoRa model RJ45 (PoE IEEE 802.3af) only PoE model
Power Consumption10 W average (min. recommended 12.5 W for LoRa model)
Initialization TimeApprox. 1 min

Mechanics

PerfomanceInformation
Dimensions and WeightØ 130.0 mm x 36.2 mm, 220 g
Housing MaterialPU 8150 (only PoE model), ABS PA-557 (only LoRa model)
Standard off-the-shelf ColorsWhite, Black (additional colors on demand)
Operating Temperature0° to 35°C
Storage Temperature-20° to 60°C
InstallationIncluded: On-ceiling mounting plate. Optional: Terabee Recess Mounting Kit XL
CertificationsCE, FCC, RoHS (+ UKCA for LoRa model)

PoE Communication

PerfomanceInformation
Frequency of Data CommunicationReal-time or at predefined time intervals
Recommended CablingCat 6 or later
AddressingDHCP, Static IP
Device Hostnameterabee-(serial_number)
Data ProtocolsHTTP/HTTPS, MQTT/MQTTS
Remote Device ConfigurationMQTT commands
Outbound Traffic Required On Port53, 80/443, 1883/8883, 1194
Set Up InterfaceGigabit Ethernet

LoRa Communication

PerfomanceInformation
Frequency of Data CommunicationPredefined time intervals (min. of 1 minute)
Supported LoRaWan FrequenciesEU 863-870 MHz, US 902-928 MHz
LoRaWAN Activation MethodsOTAA, ABP
Antenna Specification‘+0.8 dBi, VSWR ≤ 2
Remote Device ConfigurationLoRa downlink commands
Set Up Interface for ConfigurationLocal Wi-Fi Access Point
Set Up Interface for Data TransmissionLoRaWAN (1.0.3, Classe A), Gigabit Ethernet (2)
